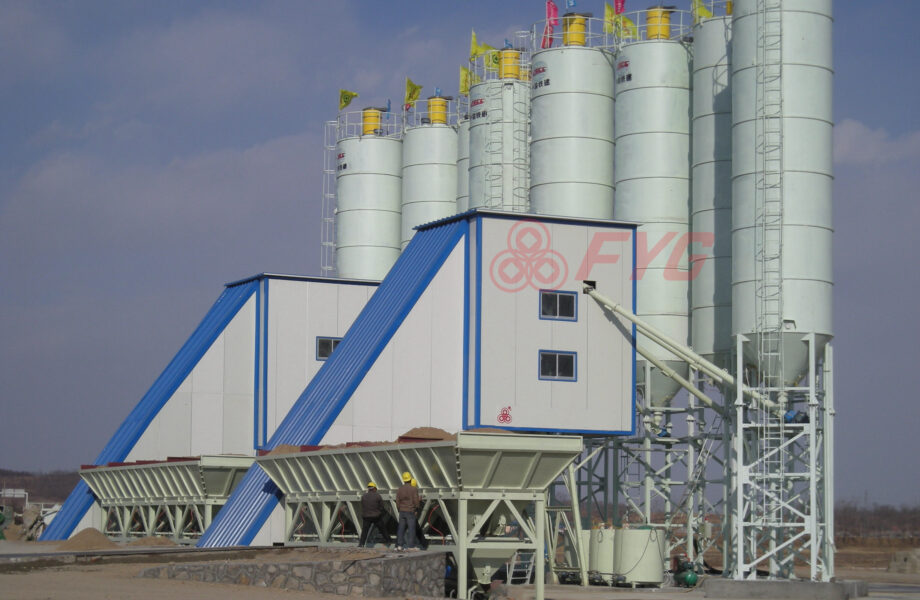

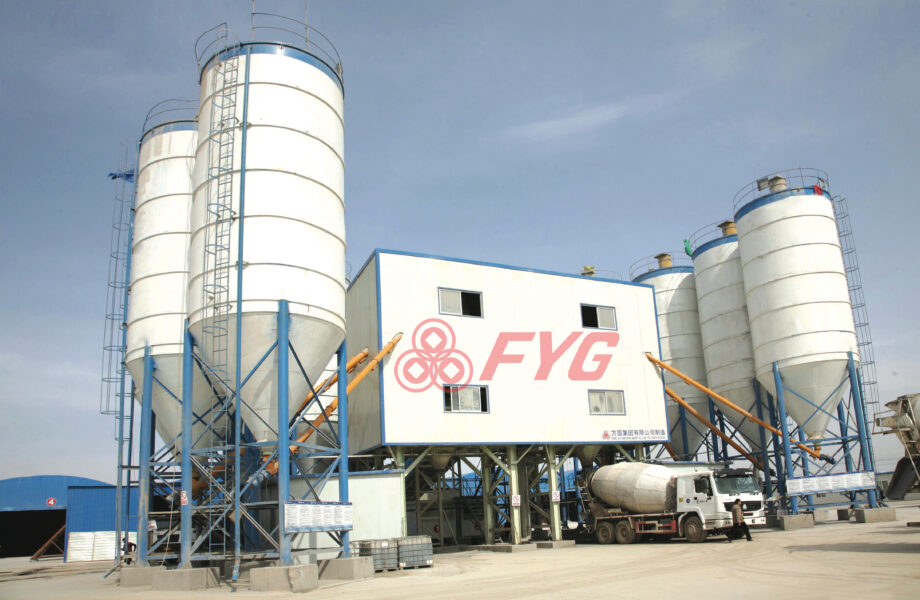

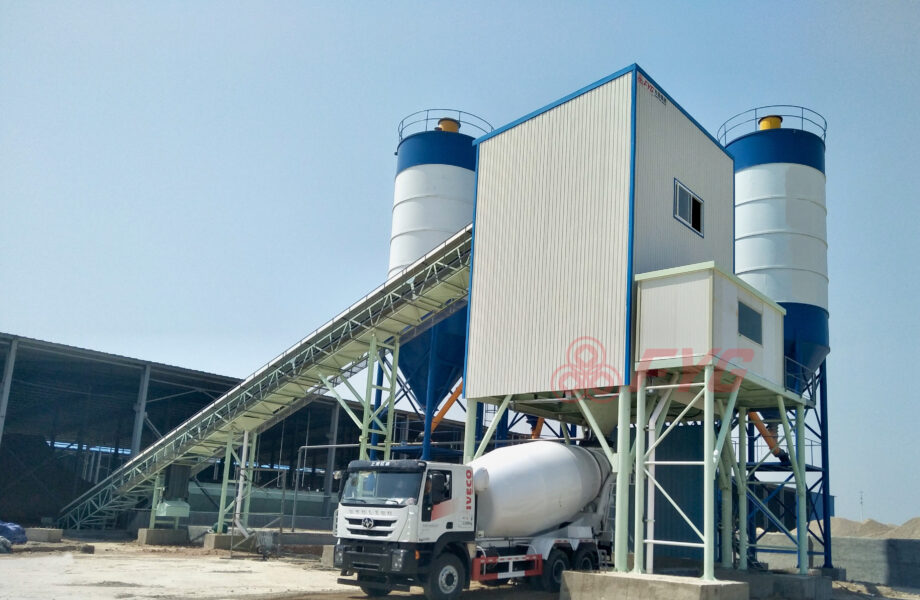

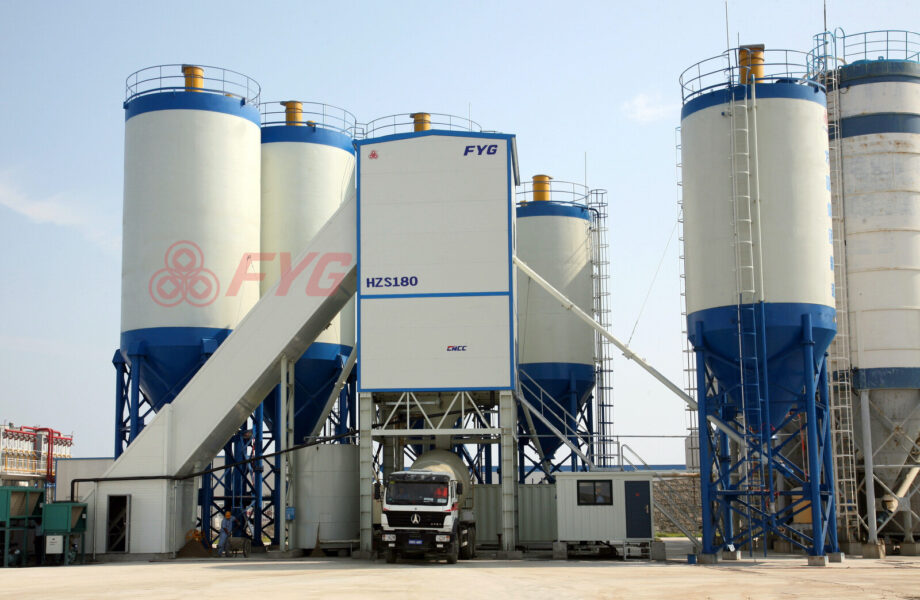

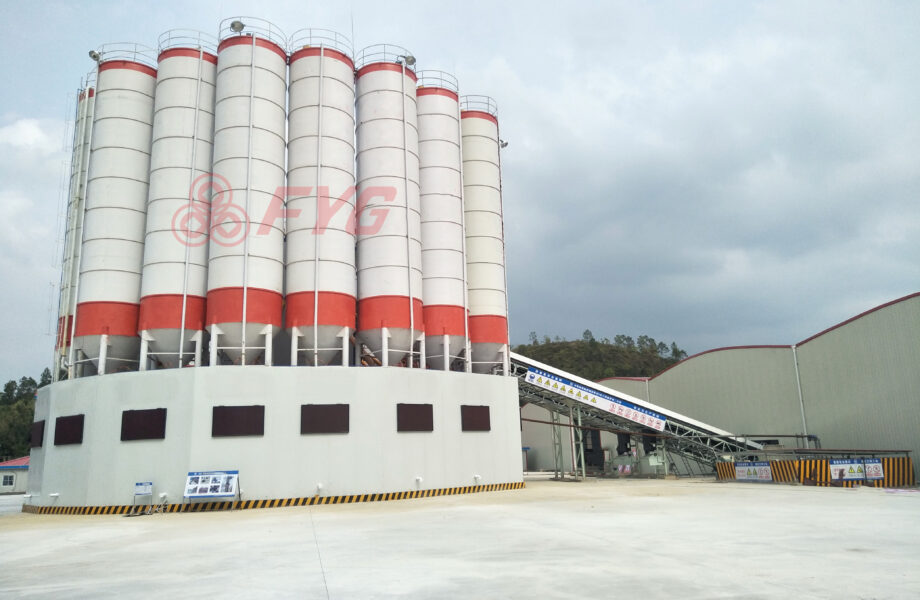

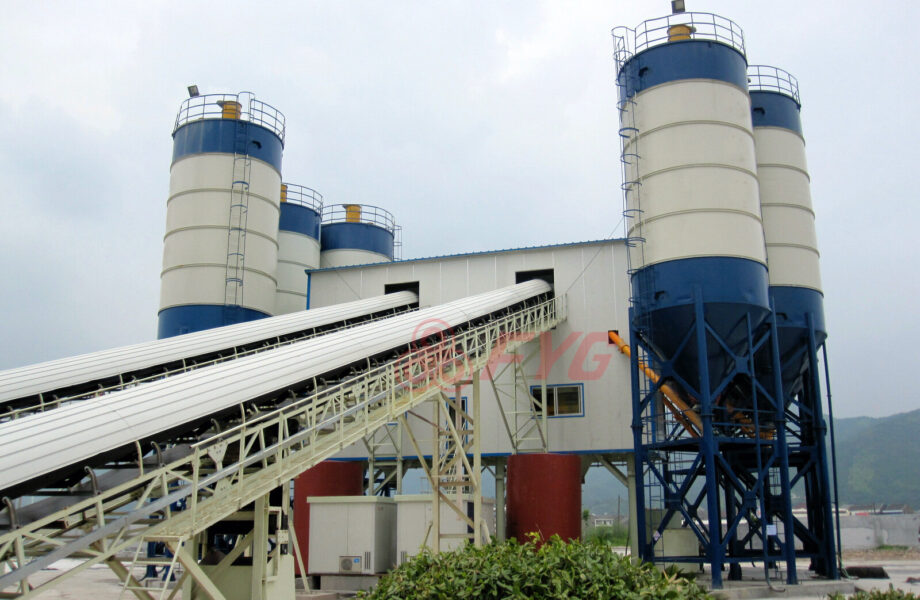

Standard mixing plants with conveyor loading

A standard mixing plant with conveyor loading has a high production capacity and offers easy operation and maintenance. The plant’s configuration is flexible, allowing it to fit within unique job site layouts.

  • High production capacity
  • Easy operation and maintenance in wide areas
  • High efficiency
  • Flexibility in configuration
  • Conformity with special site layouts
Select a type
HZS60

Specifications: HZS60

  • Nominal output60 m³/h
  • Mixer charging1 m³
  • Batching machinePLD1600Q-III
  • Aggregate storage bins charging7 m³
  • Aggregate storage bins quantity3 pc
  • Aggregate weighing capacity2000 kg
  • Cement weighing capacity600 kg
  • Flyash weighing capacity/
  • Water weighing capacity250 kg
  • Additive weighing capacity40 kg
  • Mixer power37 kW
  • Belt conveyor power15 kW
  • Total power80 kW
  • Mixer discharge height3.8 m
  • Total weight32 t
  • Outline dimension (L x W x H)31.4 m x 15.4 m x 19.4 m
