Compact mixing plants with skip loading

Back to overview

Compact mixing plants with skip loading

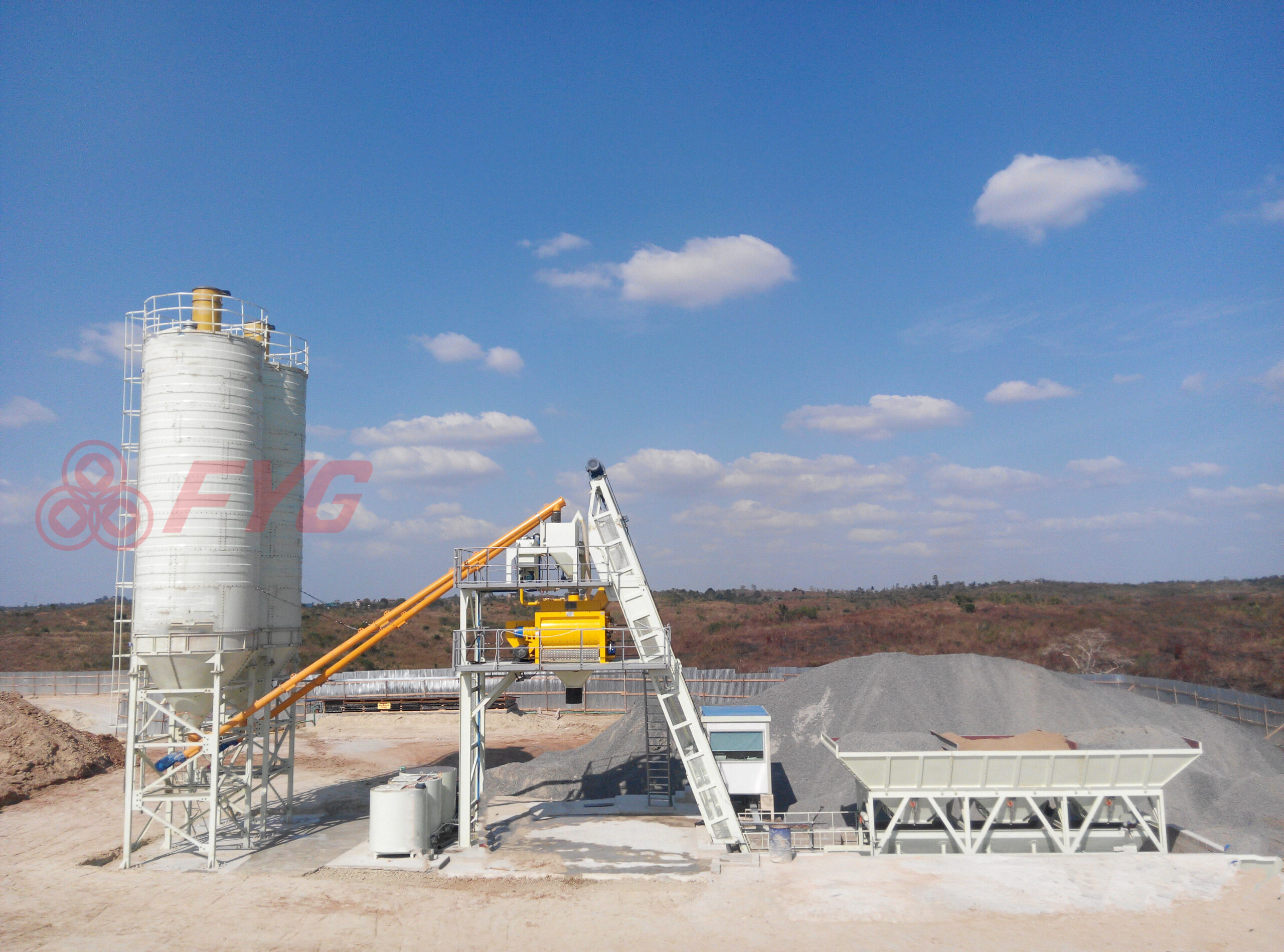

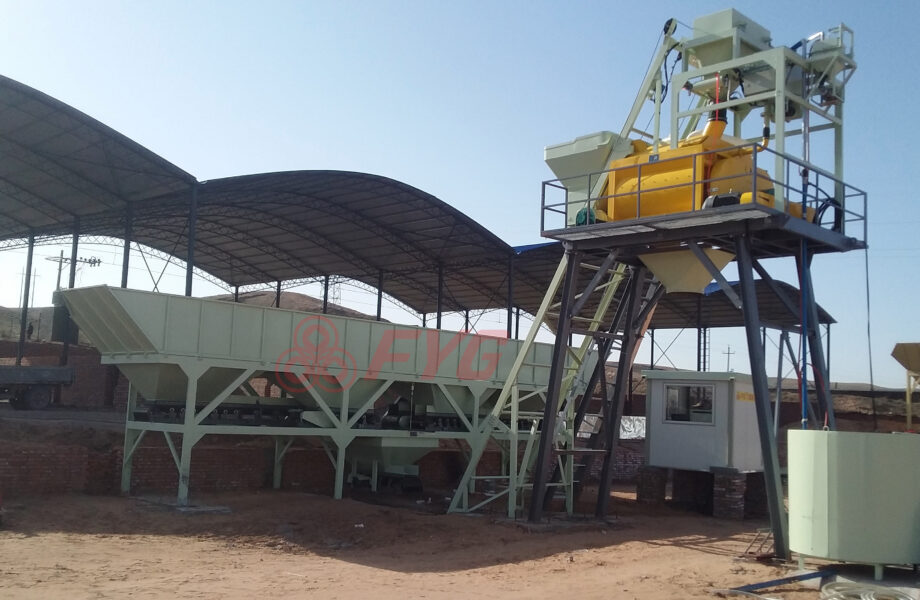

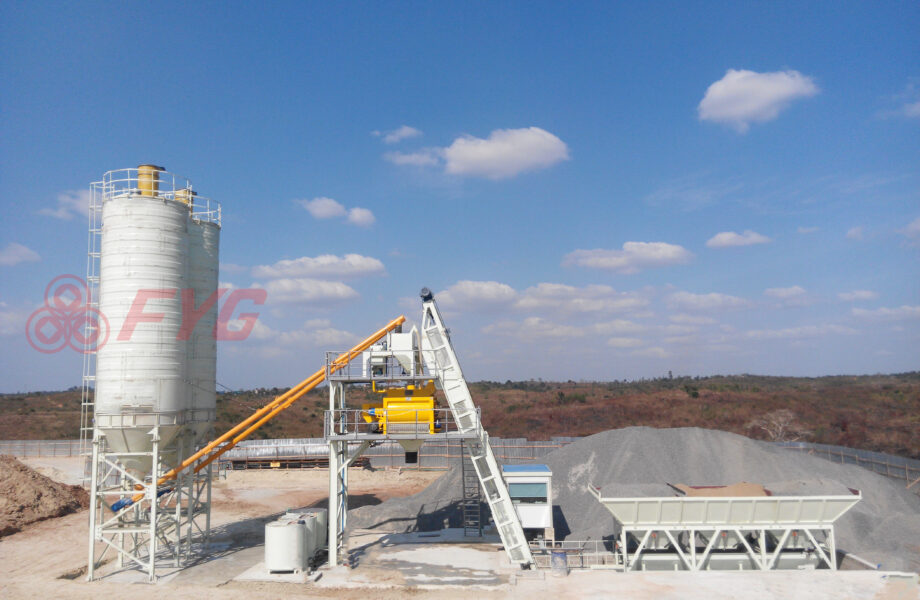

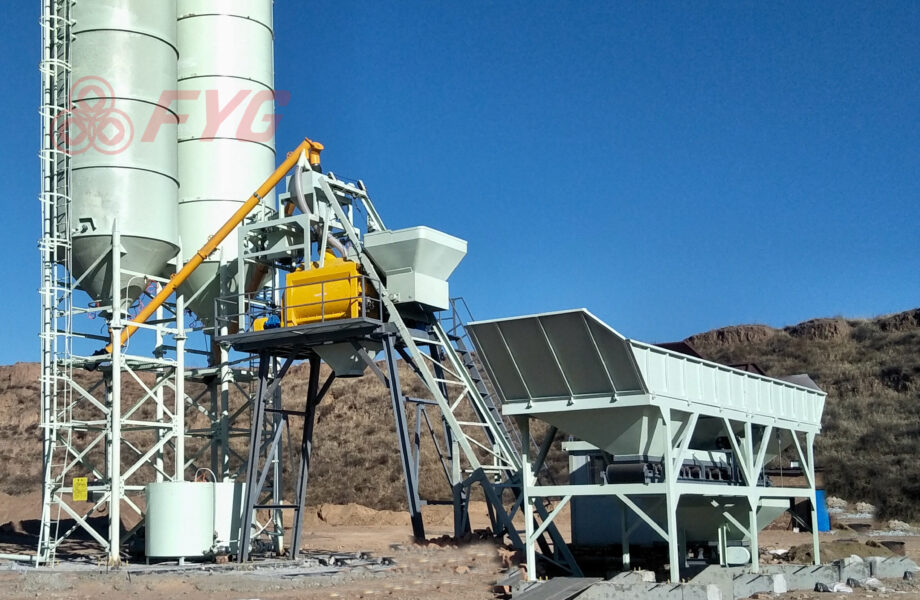

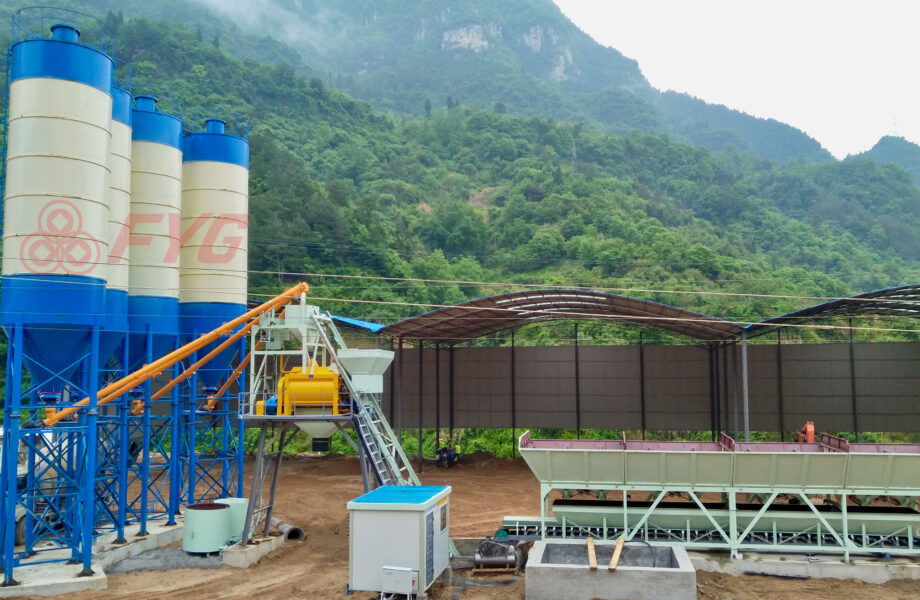

The compact mixing plant with skip loading uses only a small portion of the construction site while providing exceptional performance and output. Versatile, durable, and economical, this plant has compact dimensions that let it easily fit into smaller sites.

  • Small space, great performance
  • Versatile, economical, durable
  • Compact dimensions
Select a type
HZS25

Specifications: HZS25

  • Nominal output25 m³/h
  • Mixer charging0.5 m³
  • Batching machinePLD800
  • Aggregate storage bins charging3 m³
  • Aggregate storage bins quantity2 pc
  • Aggregate weighing capacity1000 kg
  • Cement weighing capacity300 kg
  • Flyash weighing capacity/
  • Water weighing capacity/
  • Additive weighing capacity/
  • Mixer power18.5 kW
  • Belt conveyor power5.5 kW
  • Total power35 kW
  • Mixer discharge height3.8 m
  • Total weight7.4 t
  • Outline dimension (L x W x H)8.4 m x 6.2 m x 7.9 m
